RSP-1000 Series with parallel and PFC functions

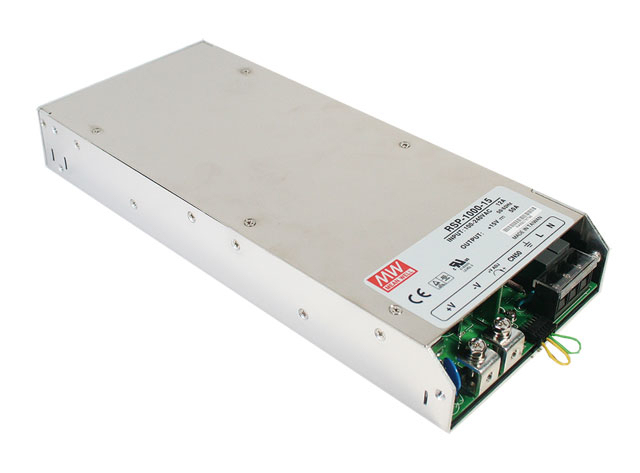

RSP-1000 Series Photo


RSP-1000 has an innovative low power loss circuit topology which yields efficiency up to 90% in a small package. While having a very high power density 10.7W/in3 the RSP-1000 series can still provide full output power in ambient temperatures up to 50°C (122ºF). Output voltage is adjustable ±10% by simple rheostat on the terminal strip. There is also a "wide range trimming function" that allows output voltage to be adjusted from 40% to 115% of the rated output voltage by adding an external voltage source or resistors. Engineers love this because it provides a great deal of flexibility in system design and modification.

RSP-1000 also employs an advanced digital control technique that uses a microprocessor for power management. This significantly increases the flexibility of PSU control and reduces part count. To allow for expansion, or to simply meet the need for more power, RSP-1000 can be connected with up to three of the same units to increase the output wattage up to 4,000 Watts by utilizing the built-in parallel function that allows current sharing.

For overload protection the RSP-1000 series use “constant current limiting plus delay shutdown” which enables the unit to power capacitive/inductive loads and still provide full protection for customers’ systems. Other built-in functions include remote sense, remote ON/OFF control, 5V/0.5A auxiliary output, and DC OK alarm signal output (TTL signal). The series complies with UL, CUL, TUV, CB and CE regulations that ensure user safety.



Applications include industrial control and automation systems, mechanical and electrical equipment, front-end power systems, industrial and military instrumentation, moving sign, telecom/datacom/signal, laser-carving machines, IC testing equipment, LCD panel burn-in systems and battery charging or any systems that require high power in a 1U low profile.

RSP-1000 Series Features at a Glance:

  • Universal AC input - Full Range 90~264VAC for use world-wide
  • Built-in 5V/0.5A auxiliary output for remote control
  • High efficiency (up to 90%) with high power density of 10.7W/in3
  • Active PFC function (PF>0.95) is compliant with EN61000-3-2
  • 41mm low profile IU design
  • Output voltage is adjustable ±10% by simple rheostat on the terminal strip
  • Output voltage can be trimmed between 40~110% rated value by adding an external voltage source or resistor
  • DC OK signal output (TTL signal)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Remote ON-OFF control
  • Remote sense function
  • Built-in parallel function allows current sharing up to 4,000 Watts (3+1)
  • Forced air cooling with DC fan that has speed control
  • Safety Standards: UL60950-1, TUV EN60950-1
  • Certificates: UL / CUL / TUV / CB / CE
  • Dimensions: 295L X 127W X 41mmH (11.6“L x 5.0“W x 1.6“H)
  • RoHS Compliant
  • 5 year warranty
