Compact (Slim) DIN Rail Power Supplies

With 90% or higher efficiency and built-in protections against short circuits, overloads, over voltage and over temperature, the Compact Green Series of DIN rail supplies are environmentally desirable, economical to operate and conserve rail space. With UL 508 (industrial control equipment) approval and a wide operating temperature range, all are reliable, even in the most demanding environments.

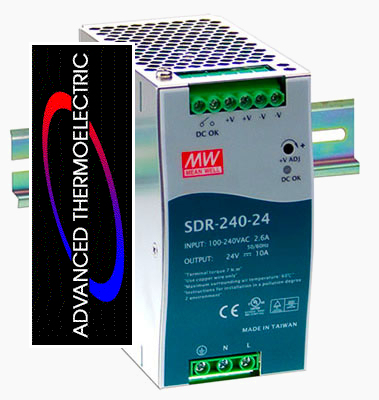

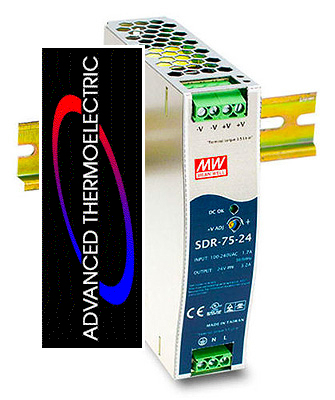

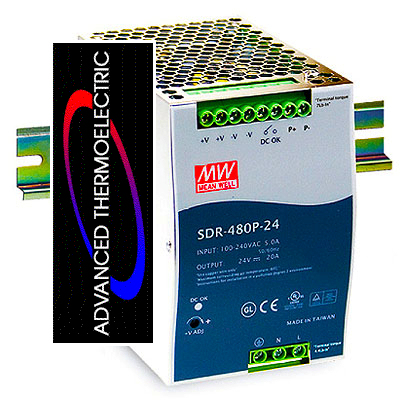

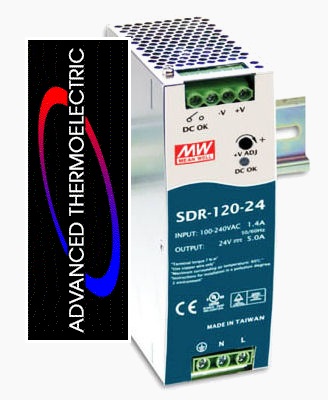

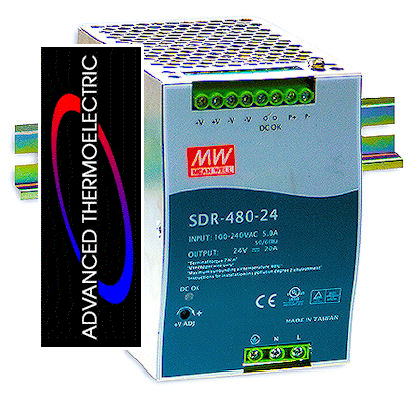

SDR Series - Universal AC Input

Universal AC Input (88~264VAC) Compact DIN Rail Power Supplies
Typically used in 110 or 220VAC input applications

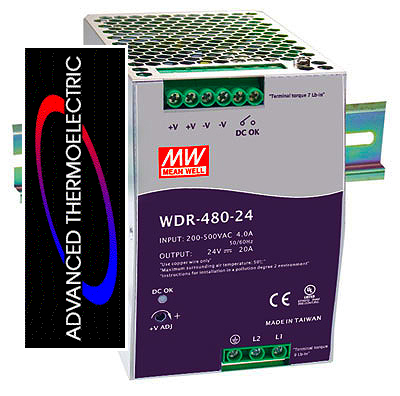

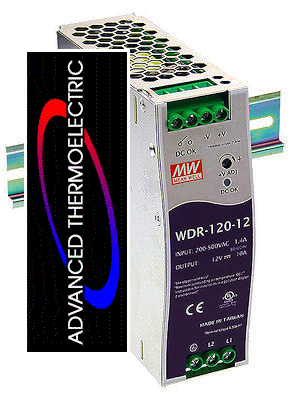

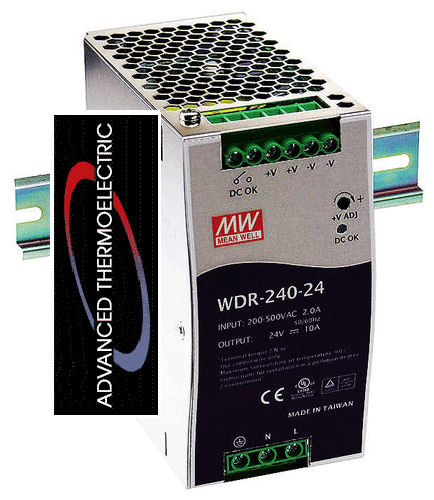

WDR Series - Wide Input Range

Wide Input Compact DIN Rail Power Supplies
Typically used in single phase 230VAC input applications
Single and dual phase wide input range 180~550VAC or 254~780VDC

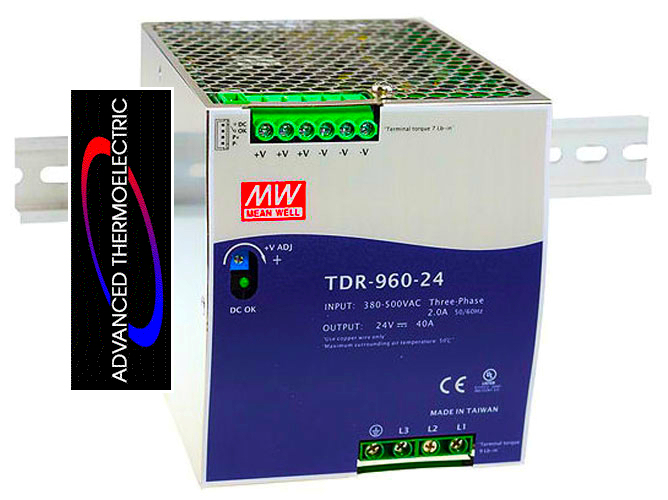

TDR Series - Three Phase Input

Three-Phase 340~550VAC wide input range Compact DIN Rail Power Supplies
Two phase operation possible

Both the WDR and TDR series certificates include UL508 / CB / CE while the SDR Series have with UL, CUL, CB, TUV, and CE certificates.
All meet the EMC requirements of heavy industrial immunity level (EN61000-6-2).



High Reliability, Compact and Quiet

Compact fan-less designs

High efficiency

UL508 (industrial control equipment) compliant

Output voltage may be increased by 15% by simple rheostat in front cover

3 year warranty



Purchasing agents and other quantity buyers are encouraged to request a quotation.
