Crystal's Conventional Thermoelectric Cooling Modules

The standard “S” - Series modules are high performance modules for traditional cooling applications (refrigeration, electronics, instrumentation, industrial, automotive). Additional “Types” are available for various applications (see specifications below)

  • Recommended operating temperature: up to 120 °С
  • Maximum temperature for a short time (to mount a module into unit): 130 °С
  • Max ΔT up to 75 °С (at Thot = 25 °С)
  • Minimal cycling stability in ON-OFF power cycling mode: over 60,000 cycles (cycle time is 60/60 seconds)
  • Recommended operational current: 0.7 of Imax
  • Recommended operational voltage: 0.8 of Umax
  • Wires: UL-1569 in PVC insulation

STANDARD COOLING MODULE SPECIFICATIONS

Part Number Designations S-127-14-15
S = Product Series, 127 = Number of Couples, 14 = Cross-section of Elements (1.4 mm), 15 = Height of Elements (1.5 mm)

Part Number

STANDARD Type
S” - Series
Thot= 25°С RAC
at 25 °С
Ohm
Dimensions
(mm)

А (А1) x B x H
L x W x H
Types Available Other Than "S"

SN = STANDARD-232
R = RELIANCE
C = CYCLE
CH = CYCLE + HOT
H = HOT

Imax

A

Umax

V

Qmax

W

∆Tmax

K

S-007-10-08 5.70 0.9 3.1 72.5 0.12 8 x 8 x 3.1 SN, H
S-017-10-08 2.2 7.7 0.29 10 x 10 x 3.1 SN, H
S-031-10-08 3.9 13.9 0.52 20 x 20 x 3.1 SN, C, CH, H
S-071-10-08 9 32 1.2 20 x 20 x 3.1 SN, C, CH, H
S-127-10-08 16.2 57.6 2.13 30 x 30 x 3.1 SN, C, CH, H
S-241-10-08 30.7 109.1 4.05 40 x 40 x 3.1 SN, C, CH, H
S-007-10-13 3.4 0.9 2.1 74.5 0.20 8 x 8 x 3.6 SN, R, H
S-017-10-13 2.2 5.1 0.47 10 x 10 x 3.6 SN, R, H
S-031-10-13 3.8 9.3 0.87 15 x 15 x 3.6 SN, R, C, CH, H
S-063-10-13 8 18.8 1.76 30 x 15 x 3.6
or 15 x 30 x 3.6
SN, R, C, CH, H
S-071-10-13 9 21.2 1.98 20 x 20 x 3.6 SN, R, C, CH, H
S-127-10-13 16.2 37.9 3.55 30 x 30 x 3.6 SN, R, C, CH, H
S-131-10-13 16.7 39.1 3.66 40 x 23 x 3.6 SN, R, C, CH, H
S-241-10-13 30.7 71.8 6.73 40 x 40 x 3.6 SN, R, C, CH, H
S-287-10-13 36.6 85.6 8.01 40 x 40 x 3.6 SN, R, C, CH, H
S-007-10-15 3.0 0.9 1.8 74.5 0.23 8 x 8 x 3.8 SN, R, H
S-017-10-15 2.2 4.4 0.55 10 x 10 x 3.8 SN, R, H
S-031-10-15 3.9 8.1 1.00 15 x 15 x 3.8 SN, R, C, CH, H
S-063-10-15 8 17 2.04 30 x 15 x 3.8 SN, R, C, CH, H
S-071-10-15 9 18.6 2.29 20 x 20 x 3.8 SN, R, C, CH, H
S-127-10-15 16.2 33.2 4.09 30 x 30 x 3.8 SN, R, C, CH, H
S-241-10-15 30.7 63 7.77 40 x 40 x 3.8 SN, R, C, CH, H
S-287-10-15 36.6 75 9.25 40 x 40 x 3.8 SN, R, C, CH, H
S-031-10-20 2.2 3.9 5.5 75 1.33 15 x 15 x 4.3 SN, R, C, CH, H
S-127-10-20 16.2 22.5 5.46 30 x 30 x 4.3 SN, R, C, CH, H
S-007-10-25 1.8 0.9 1.1 75.5 0.38 8 x 8 x 4.8 SN, R, H
S-017-10-25 2.2 2.6 0.92 10 x 10 x 4.8 SN, R, H
S-031-10-25 3.9 4.8 1.68 15 x 15 x 4.8 SN, R, C, CH, H
S-063-10-25 8.0 8.9 3.41 30 x 15 x 4.8
or 15 x 30 x 4.8
SN, R, C, CH, H
S-071-10-25 9.0 11 3.84 20 x 20 x 4.8 SN, R, C, CH, H
S-127-10-25 16.2 19.7 6.88 30 x 30 x 4.8 SN, R, C, CH, H
S-241-10-25 30.7 37.4 13.04 40 x 40 x 4.8 SN, R, C, CH, H
S-161-12-08 7.8 20.5 99.8 72 1.98 40 x 40 x 3.3 SN, R, C, CH, H
S-161-12-10 6.6 20.5 84.2 72.5 2.49 40 x 40 x 3.3 SN, R, C, CH, H
S-161-12-15 4.0 20.5 54.6 74.5 3.88 40 x 40 x 3.3 SN, R, C, CH, H
S-161-12-13 4.5 20.5 62.4 74.5 3.42 40 x 40 x 3.3 SN, R, C, CH, H
S-032-14-045 21.4 4.1 53.3 66 0.15 20 x 20 x 3.3 SN, R, C, CH, H
S-199-14-08 11.3 25.3 178.3 71 1.69 40 x 40 x 3.3
or 44 x 40 x 3.3
SN, R, C, CH, H
S-007-14-11 7.8 0.9 4.5 72.5 0.09 10 x 10 x 3.8 SN, R, H
S-017-14-11 2.2 11 0.21 15 x 15 x 3.8 SN, R, H
S-031-14-11 3.9 20 0.38 20 x 20 x 3.8 SN, R, C, CH, H
S-063-14-11 9.0 45.9 0.87 30 x 30 x 3.8 SN, R, C, CH, H
S-071-14-11 16.2 82.1 1.55 40 x 40 x 3.8 SN, R, C, CH, H
S-127-14-11 25.3 128.6 2.43 40 x 40 x 3.8 SN, R, C, CH, H
S-241-14-11 30.7 155.8 2.94 55 x 55 x 3.8 SN, R, C, CH, H
S-007-14-13 6.8 16.2 69 74.5 1.80 10 x 10 x 3.9 SN, R, C, CH, H
S-007-14-15 5.5 0.9 3.3 74.5 0.12 10 x 10 x 3.9 SN, R, H
S-017-14-15 2.2 7.9 0.30 15 x 15 x 3.9 SN, R, H
S-031-14-15 3.9 14.5 0.54 20 x 20 x 3.9 SN, R, C, CH, H
S-071-14-15 9.0 33.2 1.24 30 x 30 x 3.9 SN, R, C, CH, H
S-127-14-15 16.2 59.4 2.22 40 x 40 x 3.9 SN, R, C, CH, H
S-161-14-15 6.0 20.5 76.7 74.5 2.57 40 x 40 x 3.9 SN, R, C, CH, H
S-199-14-15 5.5 25.3 112.7 74.5 3.49 40 x 40 x 3.9 SN, R, C, CH, H
S-241-14-15 30.7 27.9 4.23 55 x 55 x 3.9 SN, R, C, CH, H
S-059-14-15 6.0 7.6 27.9 74 0.93 29.5 x 24.5x 4.5 SN, R, C, CH, H
S-007-14-25 3.5 0.9 2.1 75.5 0.19 10 x 10 x 4.8 SN, R, H
S-017-14-25 2.1 5.2 0.46 15 x 15 x 4.8 SN, R, C, CH, H
S-031-14-25 3.9 9.4 0.84 20 x 20 x 4.8 SN, R, C, CH, H
S-071-14-25 9.0 21.6 1.92 30 x 30 x 4.8 SN, R, C, CH, H
S-127-14-25 16.2 38.6 3.43 40 x 40 x 4.8 SN, R, C, CH, H
S-241-14-25 30.7 73.2 6.51 55 x 55 x 4.8 SN, R, C, CH, H
S-007-20-15 12.1 0.9 7.1 74.5 0.06 15 x 15 x 4.6 SN, R, H
S-017-20-15 2.2 17.2 0.13 20 x 20 x 4.6 SN, R, H
S-031-20-15 3.9 31.4 0.25 30 x 30 x 4.6 SN, R, C, CH, H
S-071-20-15 9.0 71.9 0.56 40 x 40 x 4.6 SN, R, C, CH, H
S-127-20-15 16.2 128.7 1.00 55 x 55 x 4.6 SN, R, C, CH, H
S-031-20-25 7.2 3.9 18.8 75.5 0.41 30 x 30 x 5.6 SN, R, H
S-071-20-25 9.0 44 0.94 40 x 40 x 5.6 SN, R, H
S-127-20-25 16.2 78.7 1.68 55 (62) x 55 (62) SN, R, C, CH, H

Umax, Imax, Qmax tolerance: ± 5%; RAC standard tolerance: ± 10%; ± 5% is possible by request.

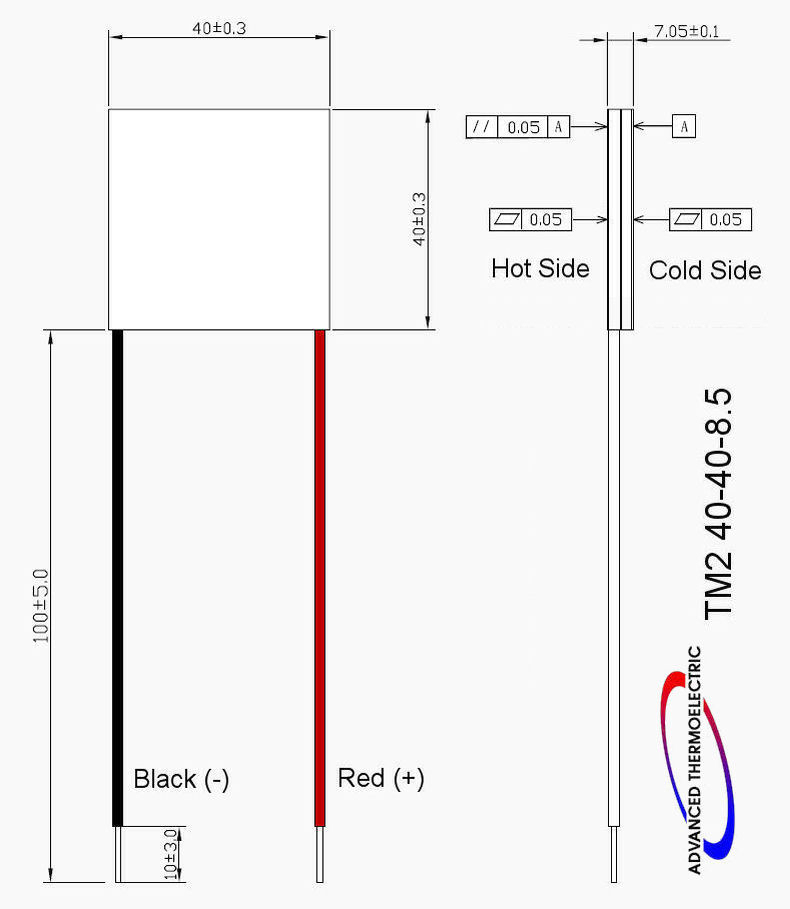

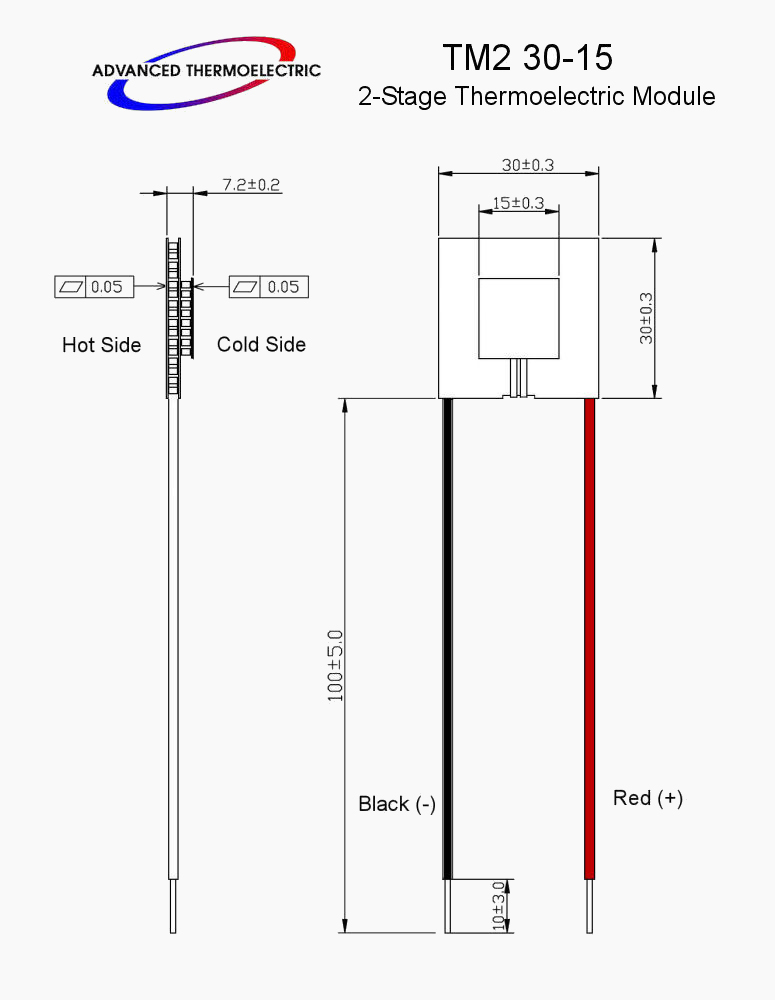

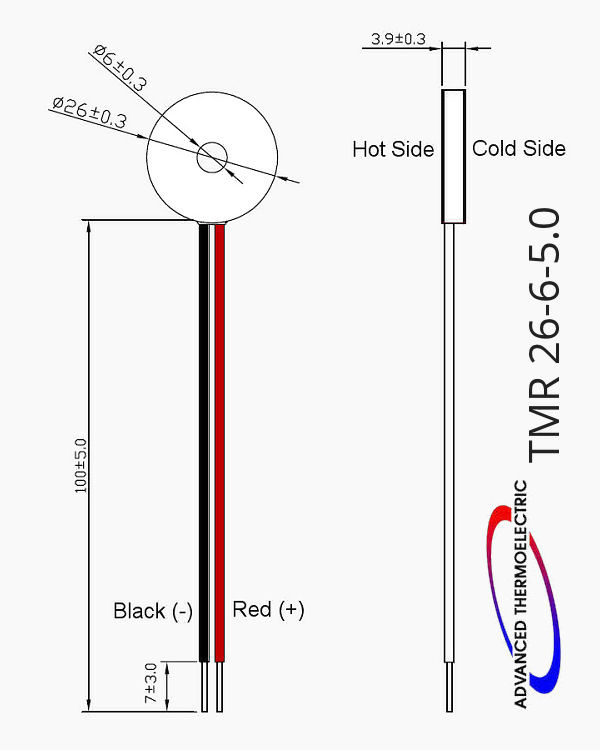

Module Drawing
